Description:
3.2'' TFT LCD module is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.
Parameter:
| Model | P032H005 |
| Screen Size | 3.2 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 48.60(H)x64.80(V)mm |
| Pixel pitch | 0.2025(H)x0.2025(V)mm |
| Pins | 40 pins |

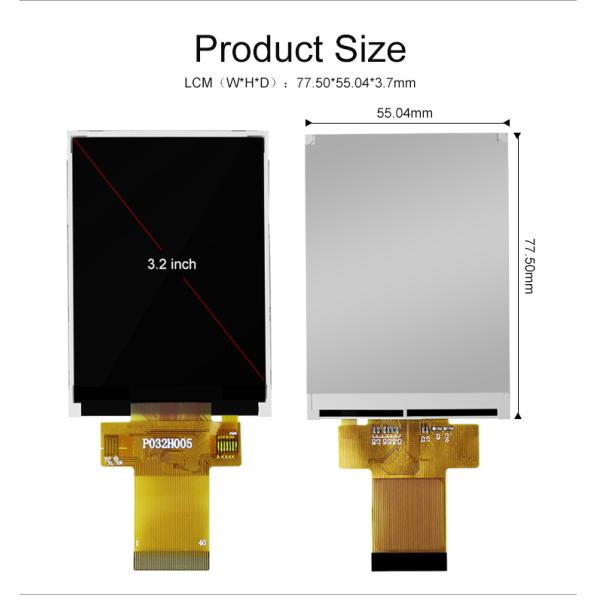

| Outline Dimension | 55.04x77.50x2.50mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 270 nit |
| Contrast Ratio | 500:1 |
| Interface | MCU 8/16bit SPI 3/4Wire |
| Back-light | LED Side-light type |
| Drive IC | ILI9341V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features and advantages:
Size and resolution: The 3.2 inch TFT LCD has a diagonal size of 3.2 inches and typically has a resolution of 240x320 pixels, which provides a high-quality display for various applications.
Color display: The TFT LCD can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.
Wide viewing angle: The TFT LCD typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.
Touch screen support: The TFT LCD can support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.
Low power consumption: TFT LCD technology typically has low power consumption, which is important for devices that run on battery power.
Durability: TFT LCDs are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.
Customization: The 3.2 inch TFT LCD can be customized to meet specific application requirements, including different sizes, resolutions, and features.
